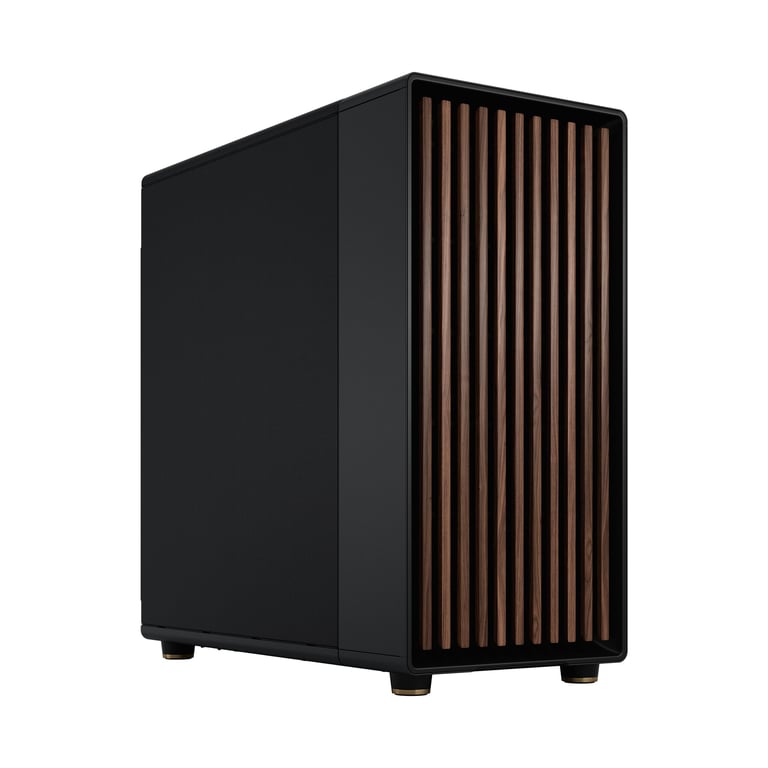

North XL combines a transformative take on the gaming PC case with a generous form factor. It fuses design materials with airflow engineering, to make performance gaming a stylish addition to the living space. Inside, it boasts a spacious, flexible, and intuitive interior layout so you can make the most of your building and gaming experience.
• Enhance the look of your gaming station with FSC-certified wood and alloy details
• Choose a GPU up to 413 mm, or up to 380 mm with a 420 mm front radiator
• Get a head start on your build with the three included 140 mm Aspect PWM fans
產品規格
North and North XL comparison
North
North XL
Cooling
Front radiator
Up to 360 mm
Up to 420/360 mm
Top radiator
Up to 240 mm
Up to 280/360 mm
Included Aspect 140 mm fans
2
3
Total 120 mm fan mounts
8 (Mesh)
4 (TG)
9 (Mesh)
7 (TG)
Total 140 mm fan mounts
6 (Mesh)
4 (TG)
8 (Mesh)
4 (TG)
Compatibility
Graphics card (max length)
Up to 355 mm
Up to 413 mm
Motherboard
ATX
E-ATX (330 mm)
Specifications
Dedicated 2.5" drive mounts
2
Combined 3.5/2.5” drive mounts
2 included
5.25” drive mounts
0
Expansion slots
7
Front interface
1xUSB 3.1 Gen 2 Type-C, 2xUSB 3.0, Audio & Mic
Total fan mounts (TG Version)
7 x 120 mm or 6 x 140 mm
Total fan mounts (Mesh Version)
9 x 120 mm or 8 x 140 mm
Front fan
3 x 120 mm, 3 x 140 mm (3 x Aspect 140mm PWM included)
Top fan
3 x 120 mm, 2 x 140 mm or 2 x 180 mm
Rear fan
1 x 120/140 mm
Dust filters
Front, PSU
Fixed cable straps
Yes
Cable routing grommets
Yes
Captive thumbscrews
HDD brackets, SSD bracket, Side Panels, Fan Bracket, PSU Bracket
Left side panel
Mesh
Right side panel
Steel
Compatibility
Motherboard compatibility
E-ATX / ATX / mATX / Mini-ITX
Power supply type
ATX
PSU max length
1 HDD Tray: 290mm max, 2 HDD Trays: 175 mm
GPU max length
413 mm with front fan mounted / 380 mm with 420/360 mm front mounted radiator
CPU cooler max height
155 mm with Fan Bracket / 185 mm w.o.
Front radiator
Up to 420/360 mm
Top radiator
Up to 280/360 mm
Rear radiator
1 x 120/140 mm
Cable routing space
29 mm
Dimensions
Case dimensions (LxWxH)
503 x 240 x 509 mm
Case dimensions w/o feet/protrusions/screws
490 x 240 x 490 mm
Net weight
9.7 kg (Mesh) / 9.5kg (TG)
Package dimensions (LxWxH)
604 x 355 x 608 mm
Gross weight
11.9 kg (Mesh) / 11.7kg (TG)
Other
Package contents (Mesh version)
North case, Accessory Box, Fan Bracket Accessory Box, User Manual
Package contents (TG version)
North case, Accessory Box, User Manual
EAN
Charcoal Black: 7340172706533, Charcoal Black TGD:843276106546, Chalk White: 7340172706557, Chalk White TGC: 7340172706564
UPC
Charcoal Black: 843276106539, Charcoal Black TGD: 843276104719, Chalk White: 843276106553, Chalk White TGC: 843276106560
JAN
Charcoal Black: 4537694326902, Charcoal Black TGD: 4537694326919, Chalk White: 4537694326926, Chalk White TGC: 4537694326933
Product Code
Charcoal Black: FD-C-NOR1X-01, Charcoal Black TGD: FD-C-NOR1X-02, Chalk White: FD-C-NOR1X-03, Chalk White TGC: FD-C-NOR1X-04
